Production of refinery reactors
The industrial site has introduced an integrated procedure for heavy petrochemical reactors production. The equipment and columns designed for different purposes are assembled of forged shells made of chromium-molybdenum-vanadium steel, which is an advanced material used for manufacturing of such vessels. The procedure involves stage-by-stage assembly and welding of forged or welded shells
Production process
01
02
03
Safety
Machining and welding
Quality control
Use of up-to-date
equipment, application of various welding and overlay welding procedures, as
well as introduction of our own unique developments make it possible to
manufacture large-sized and super-heavy reactors for oil refineries. To protect
the inner surface of vessels against corrosion, a special procedure of homogeneous single-layer electroslag overlay welding
with a 90 mm wide strip has been developed.
The machining equipment of
the production facility enable us to machine products with a diameter up to 12
m, height up to 7 m, and weight up to 400 t. The up-to-date welding equipment
and advanced technologies allows any type of welding including welding of thick
items into narrow grooves as well as overlay welding of internal anticorrosion
coatings on different surfaces including small diameter nozzles.
The quality of finished products is controlled at all production stages. Our colleagues from the Central Plant Laboratory, as well as from the Testing Center carry out the quality control.
To check the quality of finished equipment, we perform liquid penetrant, ultrasonic, radiographic, and magnetic particle tests, as well as macro- and microstructure examination of metal. Some production stages include flaw detection.
Quality control
Shipment and delivery
Izhora Plants is the only domestic manufacturer of oversized equipment with a unit weight of up to 2 000 t.. Such equipment can be only delivered by water.

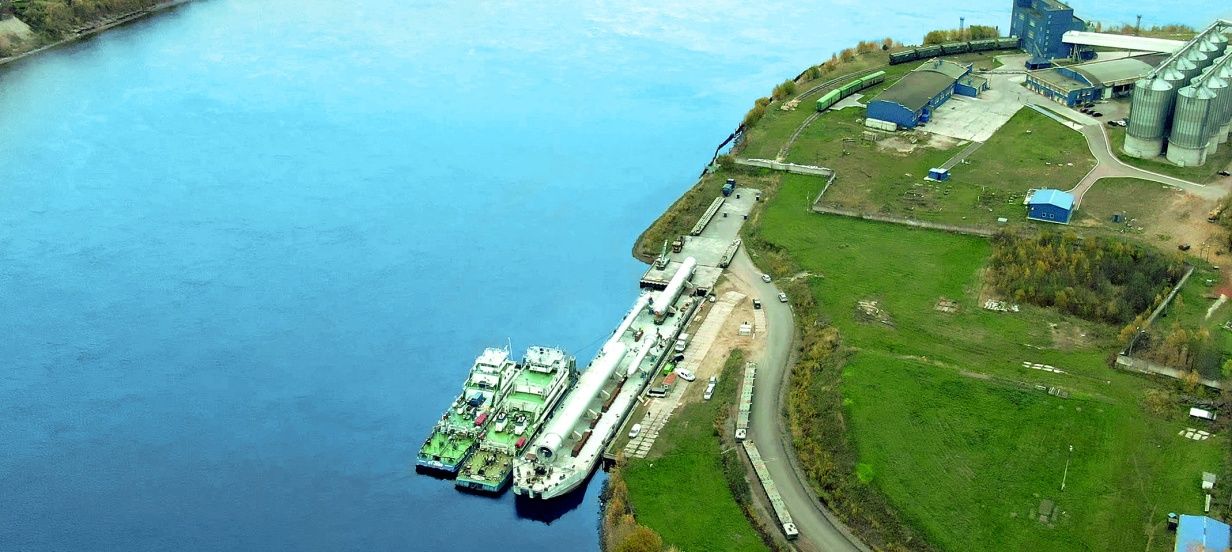

Our cargo berth on the Neva River in Ust-Slavyanka enables easy shipment of large-sized vessels using various types of river freight vehicles regardless of the Neva's water level.
The developed transport infrastructure allows rail and road shipment.
01
Large weight and large dimensions of the reactor pressure vessel
02
Available infrastructure and special equipment for transportation
03
Drawing up optimal land and water routes
04
Multi-step coordination of transportation at all stages
05
Security and support of transported objects
